7x7 7x19 Ferruled Stainless Steel Rope Mesh Netting / Architectural Wire Rope Mesh

7x7 7x19 Ferruled Stainless Steel Rope Mesh Netting / Architectural Wire Rope Mesh

    • 7x7 7x19 Ferruled Stainless Steel Rope Mesh Netting / Architectural Wire Rope Mesh
    • 7x7 7x19 Ferruled Stainless Steel Rope Mesh Netting / Architectural Wire Rope Mesh
    • 7x7 7x19 Ferruled Stainless Steel Rope Mesh Netting / Architectural Wire Rope Mesh
  • 7x7 7x19 Ferruled Stainless Steel Rope Mesh Netting / Architectural Wire Rope Mesh

    Product Details:

    Place of Origin: Hebei,China
    Brand Name: Yuntong
    Certification: CE & SGS
    Model Number: YT-1638

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 square meters
    Price: Negotiable
    Packaging Details: Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing.
    Delivery Time: Within 2 weeks after detail confirms
    Payment Terms: T/T, , Western Union, L/C
    Supply Ability: 1000000 square meters per year
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Wire Rope Mesh Net Wire Diameter: 3/64,1/16,5/64,3/32,1/8
    Mesh Aperture: 25x25-200x200mm Cable Structure: 1*7,7*7,7*19,1*19
    Usage: Zoological Enclosure Mesh,balustrade Infill Mesh Feature: High Durability,temperature Tolerance,smooth Surface
    High Light:

    stainless steel x tend mesh

    ,

    ferrule wire rope mesh

    Flexible 7x7 7x19 Ferruled Steel Cables Netting Cable Mesh



    Brief Introduction of Flexible 7x7 7x19 Ferruled Steel Cables Netting Cable Mesh:



    We are happy to introduce you to an exciting product: Stainless Steel Rope Mesh Netting, which is woven from high quality 304,316 and 316L stainless steel wire rope, and all the raw material for producing stainless steel wire cable mesh is imported from South Korea and Japan.Our Stainless Steel Wire Mesh & Wire Cloths with the high tech machines using high grade stainless steel wire. Our Stainless Steel Wire Mesh & Wire Cloths are also not affected by acids and excessive heat. It has great advantage over ordinary wire cable mes

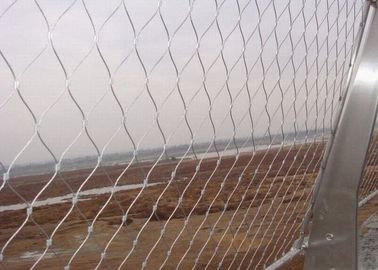

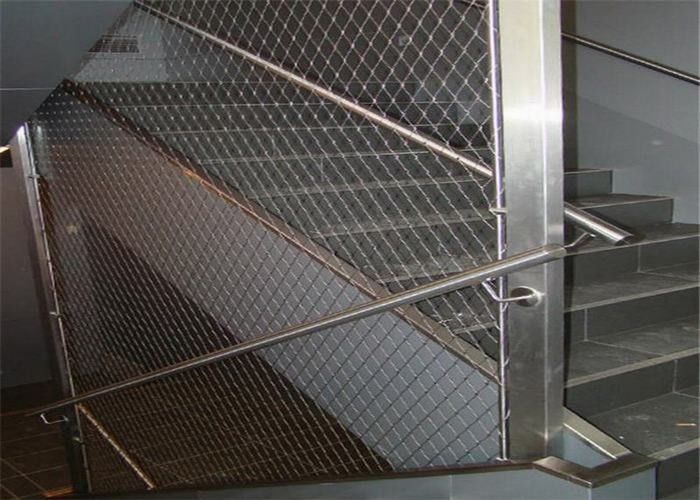

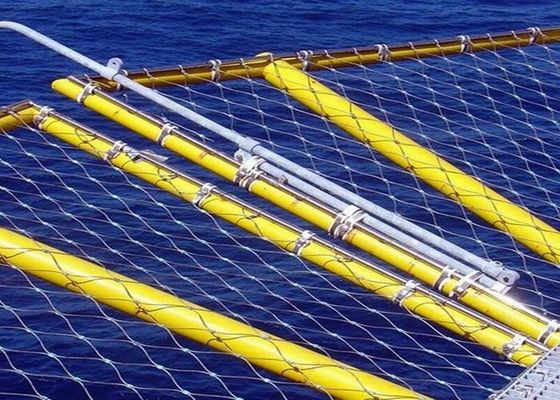

    The wire rope net especially appropriate for children’s activity such as museums, schools, and recreational fields. Applications also include balustrading, vertical greening, zoo enclosures, and safety applications. Its unique 3-D characteristics allow amazing design flexibility.



    Flexible 7x7 7x19 Ferruled Steel Cables Netting Cable Mesh advantages:

    • The netting is clipped to the cable,
    • The mesh size and diameter can be modified
    • It can be made to customer orders and statically tested – especially suitable for facades
    • High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
    • Anti-corrosive, resist the rust, can be repeated use.
    • Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
    • This product can bear the heavy snow and the gale very much.
    • without toxic material, safety, environmental protection.

    Specification of Flexible 7x7 7x19 Ferruled Steel Cables Netting Cable Mesh:

    YT-Flexible 7x7 7x19 Ferrlued Steel Cables Netting Cable Mesh
    Model Wire Diameter Mesh Opening Normal Break
      inch mm inch mm 1bs.
    YT-1220 3/64 1.2 4/5 x 4/5 20 x 20 270
    YT-1225 3/64 1.2 1x1 25.4 x 25.4 270
    YT-1230 3/64 1.2 1.2 x 1.2 30 x 30 270
    YT-1238 3/64 1.2 3/2 x 3/2 38 x 38 270
    YT-1625 1/16 1.6 1 x 1 25.4 x 25.4 480
    YT-1630 1/16 1.6 1.2 x 1.2 30 x 30 480
    YT-1638 1/16 1.6 3/2 x 3/2 38 x 38 480
    YT-1650 1/16 1.6 2 x 2 51 x 51 480
    YT-1676 1/16 1.6 3 x 3 76 x 76 480
    YT-2038 5/64 2.0 3/2 x 3/2 38 x 38 676
    YT-2050 5/64 2.0 2 x 2 51 x 51 676
    YT-2060 5/64 2.0 2.4 x 2.4 60 x 60 676
    YT-2076 5/64 2.0 3 x 3 76 x 76 676
    YT-2450 3/32 2.4 2 x 2 51 x 51 920
    YT-2460 3/32 2.4 2.4 x 2.4 60 x 60 920
    YT-2476 3/32 2.4 3 x 3 76 x 76 920
    YT-2490 3/32 2.4 3.55 x 3.55 90 x 90 920
    YT-2410 3/32 2.4 4 x 4 102 x 102 920
    YT-3250 1/8 3.2 2 x 2 51 x 51 1600
    YT-3276 1/8 3.2 3 x 3 76 x 76 1600
    YT-3290 1/8 3.2 3.55 x 3.55 90 x 90 1600
    YT-3210 1/8 3.2 4 x 4 102 x 102 1600
    YT-3212 1/8 3.2 4.75 x 4.75 120 x 120 1600

    Service of Yuntong

    Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.
