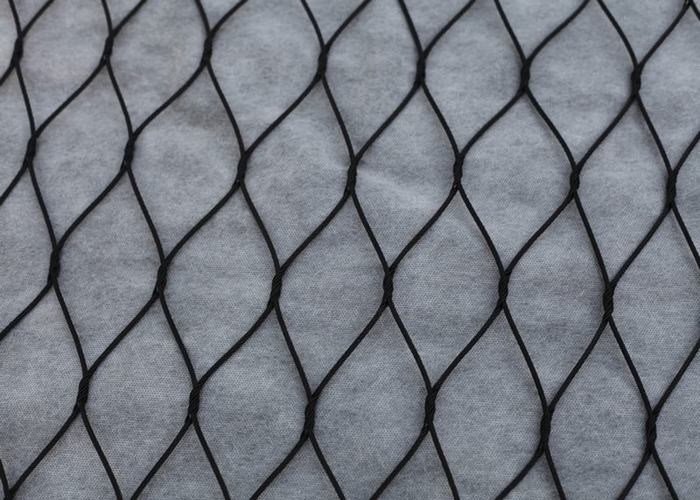

Black Oxide Ferrule Wire Rope Mesh , High Durability Metal Rope Mesh For Architectural

Black Oxide Ferrule Wire Rope Mesh , High Durability Metal Rope Mesh For Architectural

    • Black Oxide Ferrule Wire Rope Mesh , High Durability Metal Rope Mesh For Architectural
  • Black Oxide Ferrule Wire Rope Mesh , High Durability Metal Rope Mesh For Architectural

    Product Details:

    Place of Origin: Hebei,China
    Brand Name: Yuntong
    Certification: CE Certificate,SGS
    Model Number: YT-2050

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 square meters
    Price: Negotiable
    Packaging Details: Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing.
    Delivery Time: Within 2 weeks after detail confirms
    Payment Terms: T/T, , Western Union, Papal
    Supply Ability: 1000000 square meters per year
    Contact Now
    Detailed Product Description
    Name: Stainless Steel Zoo Mesh Wire Diameter: 1.2mm-3.2mm
    Mesh Aperture: 25x25-200x200mm Cable Structure: 1*7,7*7,7*19,1*19
    Usage: Aviary Netting,animal Enclosure Feature: High Durability,temperature Tolerance,smooth Surface
    Type: Woven Type And Ferrule Type
    High Light:

    woven wire rope mesh

    ,

    metal rope mesh

    Stainless Steel Black Oxide Ferrule Rope Mesh for Architectural Exterior Facade Design



    Brief Introduction of Stainless Steel Black Oxide Ferrule Rope Mesh for Architectural Exterior Facade Design:

    Black oxide mesh is available in galvanized black UV Max, aluminum with painted finishes, stainless steel and stainless steel black oxide finish.
    The mesh manufactured using our unique fabrication technique. Length and width of project specific sizes are only restricted by available shipping and handling methods



    Structure of Stainless Steel Black Oxide Ferrule Rope Mesh for Architectural Exterior Facade Design:

    The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.



    Specification of Stainless Steel Black Oxide Ferrule Rope Mesh for Architectural Exterior Facade Design​:

    • Material : Stainless steel 304,304L,316,306L etc.
    • Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
    • Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)
    YT-stainless steel black oxide rope mesh
    Model Wire Diameter Mesh Opening Normal Break
      inch mm inch mm 1bs.
    YT-1220 3/64 1.2 4/5 x 4/5 20 x 20 270
    YT-1225 3/64 1.2 1x1 25.4 x 25.4 270
    YT-1230 3/64 1.2 1.2 x 1.2 30 x 30 270
    YT-1238 3/64 1.2 3/2 x 3/2 38 x 38 270
    YT-1625 1/16 1.6 1 x 1 25.4 x 25.4 480
    YT-1630 1/16 1.6 1.2 x 1.2 30 x 30 480
    YT-1638 1/16 1.6 3/2 x 3/2 38 x 38 480
    YT-1650 1/16 1.6 2 x 2 51 x 51 480
    YT-1676 1/16 1.6 3 x 3 76 x 76 480
    YT-2038 5/64 2.0 3/2 x 3/2 38 x 38 676
    YT-2050 5/64 2.0 2 x 2 51 x 51 676
    YT-2060 5/64 2.0 2.4 x 2.4 60 x 60 676
    YT-2076 5/64 2.0 3 x 3 76 x 76 676
    YT-2450 3/32 2.4 2 x 2 51 x 51 920
    YT-2460 3/32 2.4 2.4 x 2.4 60 x 60 920
    YT-2476 3/32 2.4 3 x 3 76 x 76 920
    YT-2490 3/32 2.4 3.55 x 3.55 90 x 90 920
    YT-2410 3/32 2.4 4 x 4 102 x 102 920
    YT-3250 1/8 3.2 2 x 2 51 x 51 1600
    YT-3276 1/8 3.2 3 x 3 76 x 76 1600
    YT-3290 1/8 3.2 3.55 x 3.55 90 x 90 1600
    YT-3210 1/8 3.2 4 x 4 102 x 102 1600
    YT-3212 1/8 3.2 4.75 x 4.75 120 x 120 1600



    Usage of Stainless Steel Black Oxide Ferrule Rope Mesh for Architectural Exterior Facade Design:



    Our stainless steel black oxide mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.
