Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security

Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security

    • Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security
    • Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security
  • Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security

    Product Details:

    Place of Origin: Hebei,China
    Brand Name: Yuntong
    Certification: CE Certificate,SGS
    Model Number: YT-1612

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pieces
    Packaging Details: Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing.
    Delivery Time: Within 2 weeks after detail confirms
    Payment Terms: T/T, , Western Union, Papal
    Supply Ability: 1000000 square meters per year
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304,316,316L Wire Diameter: 1.2mm-3.2mm
    Mesh Aperture: 25x25-200x200mm Cable Structure: 1*7,7*7,7*19,1*19
    Usage: Aviary Netting,animal Enclosure Feature: High Durability,temperature Tolerance,smooth Surface
    Type: Woven Type And Ferrule Type

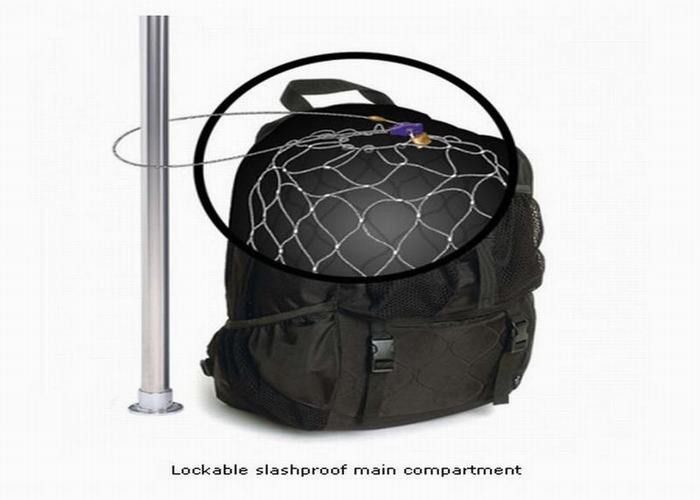

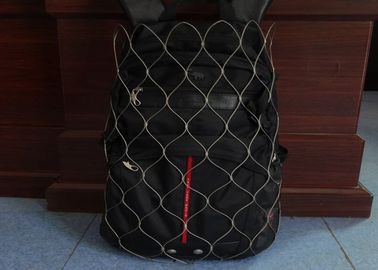

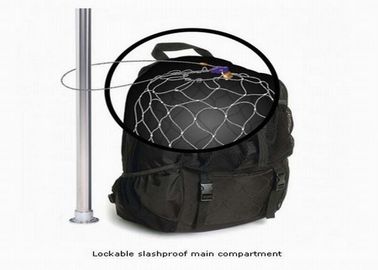

    Metal Rope Mesh Security Bags Travel Security Anti Theft Bags



    Specification of Metal Rope Mesh Security Bags Travel Security Anti Theft Bags:



    1. Material : Stainless steel 304,304L,316,306L etc.
    2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
    3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)



    Mesh Types of Metal Rope Mesh Security Bags Travel Security Anti Theft Bags:



    The Metal Wire Rope Mesh for Anti-theft Travelling Bags Security are handmade from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh



    1) Kontted mesh is a kind of plain weave, each wrap wire rope crosses alternately above and below each weft wire rope, warp and weft wire ropes generally have the same diameter.



    2) Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.


    Usage of Metal Rope Mesh Security Bags Travel Security Anti Theft Bags:



    Our stainless steel black oxide mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.



    YT-stainless steel rope mesh
    Model Wire Diameter Mesh Opening Normal Break
      inch mm inch mm 1bs.
    YT-1220 3/64 1.2 4/5 x 4/5 20 x 20 270
    YT-1225 3/64 1.2 1x1 25.4 x 25.4 270
    YT-1230 3/64 1.2 1.2 x 1.2 30 x 30 270
    YT-1238 3/64 1.2 3/2 x 3/2 38 x 38 270
    YT-1625 1/16 1.6 1 x 1 25.4 x 25.4 480
    YT-1630 1/16 1.6 1.2 x 1.2 30 x 30 480
    YT-1638 1/16 1.6 3/2 x 3/2 38 x 38 480
    YT-1650 1/16 1.6 2 x 2 51 x 51 480
    YT-1676 1/16 1.6 3 x 3 76 x 76 480
    YT-2038 5/64 2.0 3/2 x 3/2 38 x 38 676
    YT-2050 5/64 2.0 2 x 2 51 x 51 676
    YT-2060 5/64 2.0 2.4 x 2.4 60 x 60 676
    YT-2076 5/64 2.0 3 x 3 76 x 76 676
    YT-2450 3/32 2.4 2 x 2 51 x 51 920
    YT-2460 3/32 2.4 2.4 x 2.4 60 x 60 920
    YT-2476 3/32 2.4 3 x 3 76 x 76 920
    YT-2490 3/32 2.4 3.55 x 3.55 90 x 90 920
    YT-2410 3/32 2.4 4 x 4 102 x 102 920
    YT-3250 1/8 3.2 2 x 2 51 x 51 1600
    YT-3276 1/8 3.2 3 x 3 76 x 76 1600
    YT-3290 1/8 3.2 3.55 x 3.55 90 x 90 1600
    YT-3210 1/8 3.2 4 x 4 102 x 102 1600
    YT-3212 1/8 3.2 4.75 x 4.75 120 x 120 1600



    Service of Yuntong:



    Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.

    Yuntong Anti Theft Wire Mesh Woven Type / Ferrule Type For Travel Security
