| Place of Origin: | Anping, Hebei |
| Brand Name: | Yuntong |
| Certification: | CE & SGS |
| Model Number: | YT-J1651F |
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Packaging Details: | waterproof bags and wooden case |
| Delivery Time: | 5-10 days |
| Supply Ability: | 500 square meters per month |
| Material: | SS316(l), Ss304 | Wire Diameter: | 1.2mm, 1.5mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm |
|---|---|---|---|
| Opening Size: | 25*25mm To 102*102mm | Mesh Type: | Woven Type & Ferrule Type |
| Mesh Surface Treatment: | Polished Or Black Oxide | Installation Guide: | Available |
| Certification: | CE & SGS | Construstions: | 7*7 & 7*19 |
| Mesh Orientation: | Horizontal , Vertical | Panel Size: | Customized |
| High Light: | balcony safety net,balcony protection mesh |
||

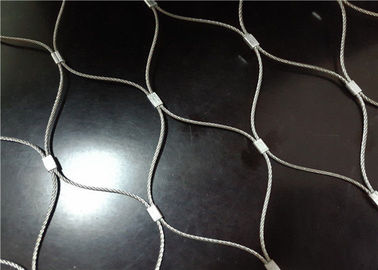

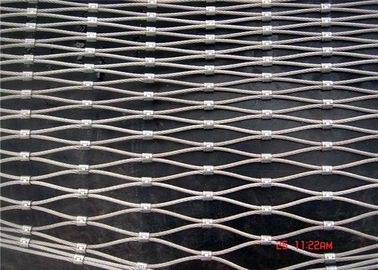

1.6mm thickness stainless steel 316 ferrule cable mesh with SGS certification
X-tend Cable Mesh Specifications Sheet :
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Material of Stainless Steel X-tend Cable Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Cable Mesh by Yuntong made from stainless steel wires, and has skin-like characteristics.
It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical.

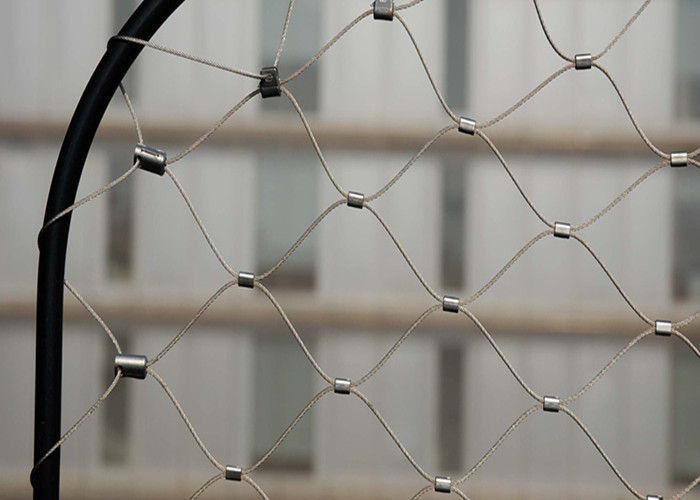

X-TEND Stainless steel mesh is light, robust, and transparent.High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of X-TEND – the mesh can even stand up to heavy loads.

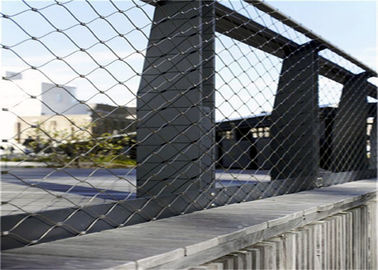

Ideal for many different applications , including : balustrade infill , plant trellisarchitecture safety net , garden fence , animal enclosure , etc .
