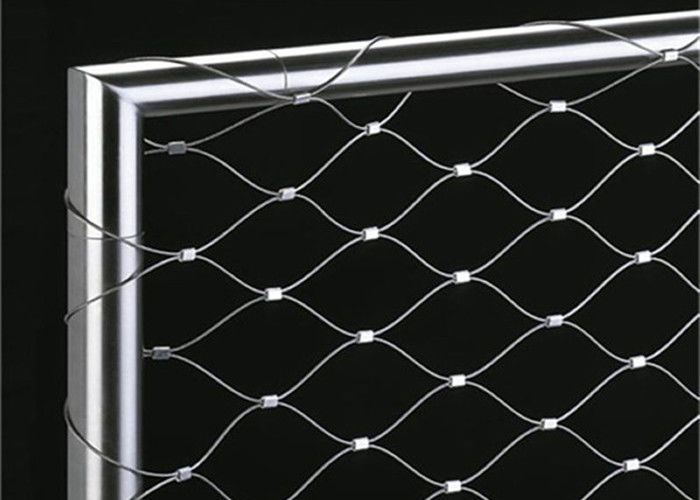

Balustrade wire mesh, stainless steel stairs railing inox mesh

Balustrade wire mesh, stainless steel stairs railing inox mesh

  • Balustrade wire mesh, stainless steel stairs railing inox mesh
Balustrade wire mesh, stainless steel stairs railing inox mesh
Product Details:
Place of Origin: Anping, Hebei
Brand Name: Yuntong
Certification: CE & SGS
Model Number: YT-1551F
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meters
Packaging Details: waterproof bags and wooden case
Delivery Time: 5-10 days
Supply Ability: 500 square meters per month
Contact Now
Detailed Product Description
Material: SS316(l), Ss304 Wire Diameter: 1.2mm, 1.5mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm
Opening Size: 25*25mm To 102*102mm Mesh Type: Woven Type & Ferrule Type
Mesh Surface Treatment: Polished Or Black Oxide Installation Guide: Available
High Light:

balcony safety net

,

balustrade safety netting

Balustrade wire mesh, stainless steel stairs railing inox mesh



1. Brief introduction;
Balustrade wire mesh, stainless steel stairs railing inox mesh is also called Rope mesh, the material is producing by high quality stainless steel wire cable, the stainless steel grade includes type 304, 304 L, 316 and 316L. The structures of the stainless steel wire cable have 7 x 7 and 7 x 19. All the material for producing stainless steel cable mesh was imported form South Korea and Japan which have super quality. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 1" x 1", 1-1/2" x 1-1/2", 2" x 2", 3" x 3" and 4" x 4".



2. Specifications;
For different usage, we have different wire diameter and opening size for your choice, the following are some hot sale types.




The list of Stainless Steel Wire Rope Mesh (knotted mesh)Material made of S.S 304 or 316 and 316L

Code



Wire Rope Construction



Min. Breaking Load

Wire Rope Diameter



Aperture



Inch mm Inch mm
YT-3210W 7x19 8.735 1/8 3.2 4" x 4" 102 x 102
YT-3276W 7x19 8.735 1/8 3.2 3" x 3" 76 x 76
YT-3251W 7x19 8.735 1/8 3.2 2" x 2" 51 x 51
YT-2410W 7x7 5.315 3/32 2.4 4" x 4" 102 x 102
YT-2476W 7x7 5.315 3/32 2.4 3" x 3" 76 x 76
YT-2451W 7x7 5.315 3/32 2.4 2" x 2" 51 x 51
YT-2076W 7x7 3.595 5/64 2.0 3" x 3" 76 x 76
YT-2051W 7x7 3.595 5/64 2.0 2" x 2" 51 x 51
YT-2038W 7x7 3.595 5/64 2.0 1.5" x 1.5" 38 x 38
YT1676W 7x7 2.245 1/16 1.6 3" x 3" 76 x 76
YT-1651W 7x7 2.245 1/16 1.6 2" x 2" 51 x 51
YT-1638W 7x7 2.245 1/16 1.6 1.5" x 1.5" 38 x 38
YT-1625W 7x7 2.245 1/16 1.6 1" x 1" 25.4 x 25.4
YT-1251W 7x7 1.36 3/64 1.2 2" x 2" 51 x 51
YT-1238W 7x7 1.36 3/64 1.2 1.5" x 1.5" 38 x 38
YT-1225W 7x7 1.36 3/64 1.2 1"x1" 25.4x25.4

The list of Stainless Steel Wire Rope Mesh (knotted mesh)Material made of S.S 304 or 316 and 316L

Code



Wire Rope Construction



Min. Breaking Load

Wire Rope Diameter



Aperture



Inch mm Inch mm
YT-3210F 7x19 8.735 1/8 3.2 4" x 4" 102 x 102
YT-3251F 7x19 8.735 1/8 3.2 2" x 2" 51 x 51
YT-2410F 7x7 5.315 3/32 2.4 4" x 4" 102 x 102
YT-2476F 7x7 5.315 3/32 2.4 3" x 3" 76 x 76
YT-2451F 7x7 5.315 3/32 2.4 2" x 2" 51 x 51
YT-2038F 7x7 3.595 5/64 2.0 1.5" x 1.5" 38 x 38
YT-1651F 7x7 2.245 1/16 1.6 2" x 2" 51 x 51
YT-1638F 7x7 2.245 1/16 1.6 1.5" x 1.5" 38 x 38
YT-1625F 7x7 2.245 1/16 1.6 1" x 1" 25.4 x 25.4
YT-1251F 7x7 1.36 3/64 1.2 2" x 2" 51 x 51
YT-1238F 7x7 1.36 3/64 1.2 1.5" x 1.5" 38 x 38
YT-1225F 7x7 1.36 3/64 1.2 1"x1"

25.4x25.4





3. Applications;

The application areas of Balustrade wire mesh, stainless steel stairs railing inox mesh are accordingly versatile: inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.

the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.


4. advantages;

When people think of protective barriers and netting for elevated walkways and bridges they often have a, for lack of better words, ugly looking image in their head. With oversized, mismatching netting that doesn’t fit the overall appearance of the bridge or other construction, there is the worry of drawing away from the constructed beauty of the architecture. However, that is not the case when it comes to our mesh solutions. The material stainless steel webnet can be built directly into the architectural design and made to seamlessly combine both beauty and safety, all at the same time.
There are two main protective measures to be taken into consideration with bridge construction with regards to safety and prevention methods.
A high railing – which can prevent people from even attempting anything as it discourages jumping from great heightsSafety nets – making potentially fatal falls impossible.These two measures help prevent suicide attempts and can also protect people from accidental falls as well.

Balustrade wire mesh, stainless steel stairs railing inox mesh 0
