Place of Origin: | Hebei,China |
Brand Name: | Yuntong |
Certification: | CE Certificate,SGS |
Model Number: | YT-2450 |
Minimum Order Quantity: | 10 square meters |
---|---|
Packaging Details: | Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing. |
Delivery Time: | Within 2 weeks after detail confirms |
Payment Terms: | T/T, , Western Union, Papal |
Supply Ability: | 1000000 square meters per year |
Name: | Stainless Steel Safety Mesh | Wire Diameter: | 1.2mm-3.2mm |
---|---|---|---|
Mesh Aperture: | 25x25-200x200mm | Usage: | Aviary Netting,animal Enclosure |
Feature: | Weatherproof And Durable, High Strength | Type: | Woven Type And Ferrule Type |
High Light: | stainless steel wire netting,stainless steel netting mesh |
Stainless Steel Rope Mesh Fence for Children Security/Security Fence
Introduction of Stainless Steel Rope Mesh Fence for Children Security/Security Fence:

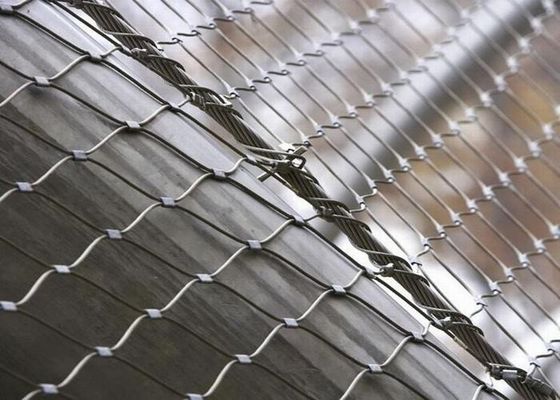

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.
Specification of Stainless Steel Rope Mesh Fence for Children Security/Security Fence:
1. Material : Stainless steel 304,304L,316,306L etc.
2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)
Usage of Stainless Steel Rope Mesh Fence for Children Security/Security Fence:
Our stainless steel rope mesh for children security is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.
Stainless Steel Rope Mesh Fence for Children Security/Security Fence does not only could protect children well, it is also suitable for building projects under difficult topographic conditions or special demands for example caused by the environmental protection. The lightweight stainless steel rope mesh is transported easily and installed on the border tubes or cables of the balustrade without extensive installation equipment. Alternatively there are pre-installed custom–sized stainless steel frames for balustrade fillings.
YT-stainless steel rope mesh | |||||
Model | Wire Diameter | Mesh Opening | Normal Break | ||
inch | mm | inch | mm | 1bs. | |
YT-1220 | 3/64 | 1.2 | 4/5 x 4/5 | 20 x 20 | 270 |
YT-1225 | 3/64 | 1.2 | 1x1 | 25.4 x 25.4 | 270 |
YT-1230 | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
YT-1238 | 3/64 | 1.2 | 3/2 x 3/2 | 38 x 38 | 270 |
YT-1625 | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
YT-1630 | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
YT-1638 | 1/16 | 1.6 | 3/2 x 3/2 | 38 x 38 | 480 |
YT-1650 | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
YT-1676 | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
YT-2038 | 5/64 | 2.0 | 3/2 x 3/2 | 38 x 38 | 676 |
YT-2050 | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
YT-2060 | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
YT-2076 | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
YT-2450 | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
YT-2460 | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
YT-2476 | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
YT-2490 | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
YT-2410 | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
YT-3250 | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1600 |
YT-3276 | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
YT-3290 | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
YT-3210 | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
YT-3212 | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
Service of Yuntong:
Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.
CE Certificate:Stainless Steel Rope Mesh Fence for Children Security
