Place of Origin: | Hebei,China |
Brand Name: | Yuntong |
Certification: | CE Certificate |
Model Number: | YT-2050 |
Minimum Order Quantity: | 10 square meters |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing. |
Delivery Time: | Within 2 weeks after detail confirms |
Payment Terms: | T/T, , Western Union, L/C |
Supply Ability: | 1000000 square meters per year |
Name: | Stainless Steel Netting Mesh | Wire Diameter: | 1.2mm-3.2mm |
---|---|---|---|
Mesh Aperture: | 25x25-200x200mm | Cable Structure: | 1*7,7*7,7*19,1*19 |
Usage: | Balustrade Infill,aviary Netting,animal Enclosure | Type: | Woven Type And Ferrule Type |
High Light: | balcony safety net,balcony protection mesh |

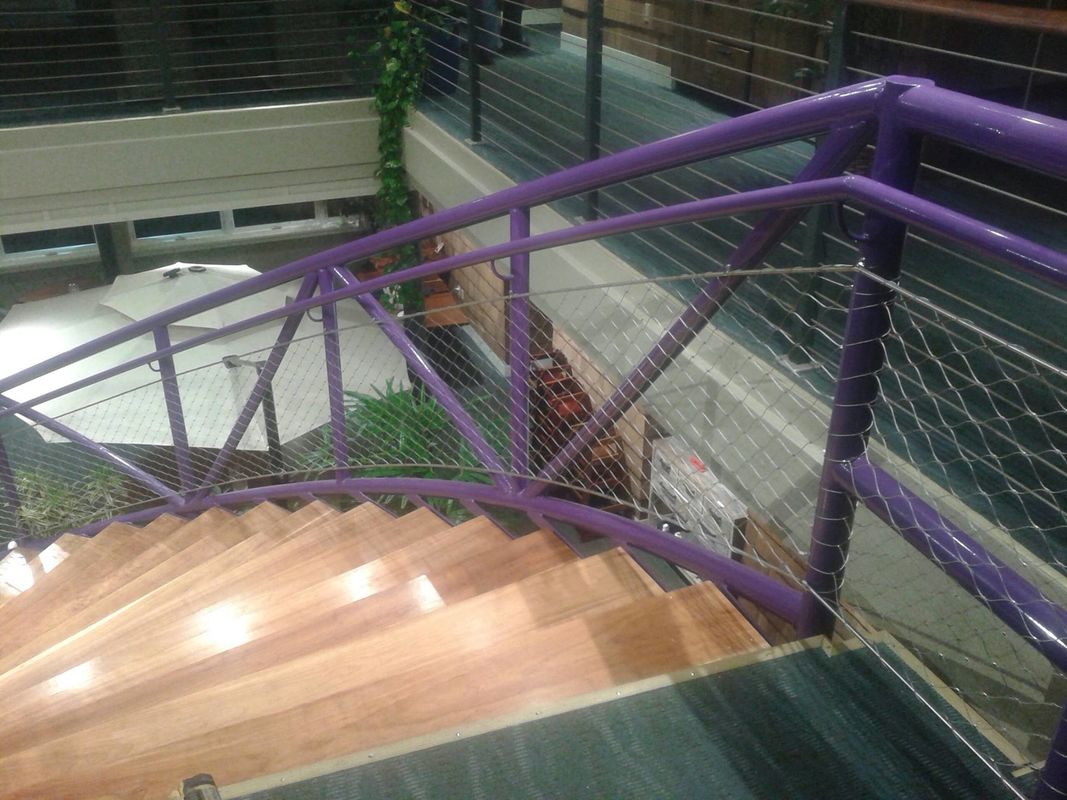

Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions
Specifications of Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions :
1. Material : Stainless steel 304,304L,316,306L etc.
2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)
Structure of Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions:
The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.
Advantages of Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions:
Recommend Specifications of Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions:
Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions | |||||
Model | Wire Diameter | Mesh Opening | Normal Break | ||
inch | mm | inch | mm | 1bs | |
YT-2060 | 5/64” | 2.0mm | 2.3”X2.3” | 60x60mm | 676 |
YT-2051 | 5/64" | 2.0mm | 2" X 2 " | 51x51mm | 676 |
YT-1660 | 1/16” | 1.6mm | 2.3”X2.3” | 60X60mm | 480 |
YT-1651 | 1/16" | 1.6mm | 2" X 2 " | 51x51mm | 480 |
YT-1560 | 0.9/16” | 1.5mm | 2.3”X2.3” | 60x60mm | 470 |
YT-1551 | 0.9/16” | 1.5mm | 2”x2” | 51x51mm | 470 |
Advantage of Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions:
Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions give balustrades and railings a sense of elegance, space and style. With careful planning and design, they have the ability to totally transform the look. Their clean and simple lines create a sleek and modern aesthetic, while offering uninterrupted views. They’re contemporary, low-maintenance and surprisingly easy and fast to install.
FAQ of Stainless Steel Wire Rope Mesh for Handrail & Balustrade Solutions:
Yes, we will manufacturer as your required specifications like mesh size, rope diameter or other special materials etc. Manufacturing always follow your instructions.
Firstly clear one concept when talk about the length and width. Is the rope mesh installation horizontal or vertical? See below picture. We ‘d better clear the direction before confirming the length and width. In the status of vertical (see below) ,any Width is available .Length should be limited to 20meters . We have to joint the mesh in length if exceed.
Yes ,but we strongly propose our customer cut and joint in their working field .Tolerance in size could be avoid in this way . We will also help you in method and tools regarding the cut and joint.
