Place of Origin: | Hebei, China |
Brand Name: | Yuntong |
Certification: | CE & SGS |
Model Number: | YT-3050W |
Minimum Order Quantity: | 10 square meters |
---|---|
Packaging Details: | waterproof bads and wooden case |
Delivery Time: | 7-10 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 500 square meters per week |
Material: | SS316(L), SS304 | Wire Diameter: | 1.2mm, 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, Etc. |
---|---|---|---|
Opening Size: | Customized | Mesh Type: | Knotted Type |
Surface Treatment: | Polished | Roll Size: | Customized |
Ferrule Type: | Seamless Ferrule Or China Ferrule | Edge Treatment: | Many Types For Your Install Choice |
High Light: | ferruled stainless steel rope mesh,ferrule wire rope mesh |

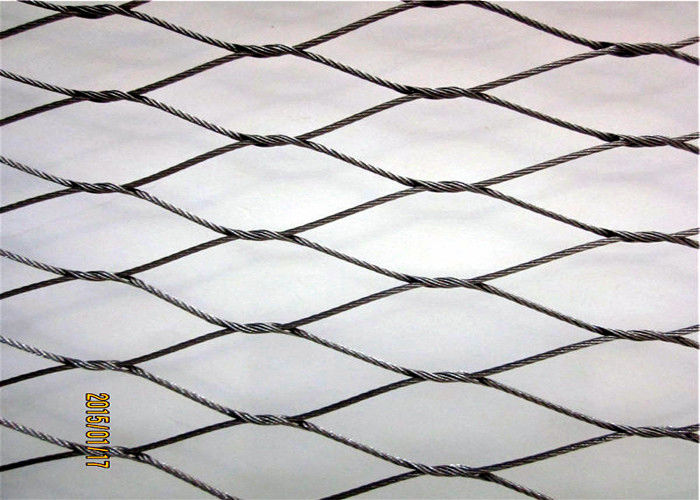

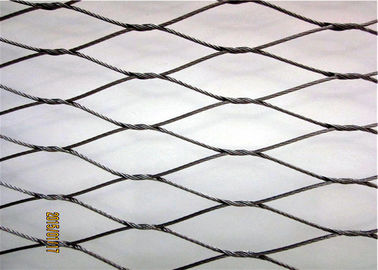

Knotted ss316 material stainless steel wire rope mesh
1.Knotted ss316 material stainless steel wire rope mesh introduction;
This mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter. Almost similar to stainless steel ferrule rope mesh in physical properties. Which is made of stainless steel wire, 100% made by hand. With the feature of flexible, light weight, anti-rust, nice view effect and srong enough.
2. Specifications of Knotted ss316 material stainless steel wire rope mesh;
Code | Wire Rope Construction | Min. Breaking Load (KN) |
Wire Rope Diameter inch |
Opening Size inch |
YT-3276W | 7*19 | 8.735 | 1/8 | 3" * 3" |
YT-2410W | 7*7 | 5.315 | 3/32 | 4" * 4" |
YT-2038W | 7*7 | 3.595 | 5/64 | 1.5" * 1.5" |
YT-1625W | 7*7 | 2.245 | 1/16 | 1" * 1" |
YT-1251W | 7*7 | 1.36 | 3/64 | 2" * 2" |
YT-1225W | 7*7 | 1.36 | 3/64 | 1" * 1" |
3. Application about Knotted ss316 material stainless steel wire rope mesh;
Knotted ss316 material stainless steel wire rope mesh is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
4. Characteristics of the Knotted ss316 material stainless steel wire rope mesh;
The structures of Knotted ss316 material stainless steel wire rope mesh have two kinds: 7 x 7 and 7 x 19. Standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
Rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane. Stainless steel ferrule rope mesh, is almost similar to stainless steel knotted rope mesh in physical properties.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
