Place of Origin: | Hebei,China |
Brand Name: | Yuntong |
Certification: | CE Certificate,SGS |
Model Number: | YT-2460 |
Minimum Order Quantity: | 10 square meters |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic foam and carton box for inner packing,Fumigated wooden cases for outer packing. |
Delivery Time: | Within 2 weeks after detail confirms |
Payment Terms: | T/T, , Western Union, Papal |
Supply Ability: | 1000000 square meters per year |
Name: | Black Oxide Zoological Enclosure Netting | Wire Diameter: | 1.2mm-3.2mm |
---|---|---|---|
Mesh Aperture: | 25x25-200x200mm | Cable Structure: | 1*7,7*7,7*19,1*19 |
Usage: | Aviary Netting,animal Enclosure | Feature: | High Durability,temperature Tolerance,smooth Surface |
Type: | Woven Type And Ferrule Type | Technique: | By Hands |
High Light: | animal enclosure netting,bird enclosure netting |
Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting
Brief Introduction of Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting
Our Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension. Our Zoo mesh is available in sizes from 25 x 25mm (1" x 1") to 125 x 125mm (5" x 5"). In wire from 0.7mm to 3.1mm (1/32 to 1/8) in stainless steel. The hand woven netting is manufactured in 7 x 7 type 304 stainless steel to your requirements.
Structure of Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting

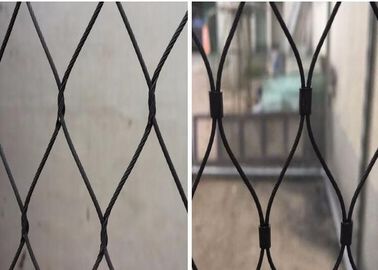

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.
Specification of Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting:
Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting | |||||
Model | Wire Diameter | Mesh Opening | Normal Break | ||
inch | mm | inch | mm | 1bs. | |
YT-1220 | 3/64 | 1.2 | 4/5 x 4/5 | 20 x 20 | 270 |
YT-1225 | 3/64 | 1.2 | 1x1 | 25.4 x 25.4 | 270 |
YT-1230 | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
YT-1238 | 3/64 | 1.2 | 3/2 x 3/2 | 38 x 38 | 270 |
YT-1625 | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
YT-1630 | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
YT-1638 | 1/16 | 1.6 | 3/2 x 3/2 | 38 x 38 | 480 |
YT-1650 | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
YT-1676 | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
YT-2038 | 5/64 | 2.0 | 3/2 x 3/2 | 38 x 38 | 676 |
YT-2050 | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
YT-2060 | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
YT-2076 | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
YT-2450 | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
YT-2460 | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
YT-2476 | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
YT-2490 | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
YT-2410 | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
YT-3250 | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1600 |
YT-3276 | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
YT-3290 | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
YT-3210 | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
YT-3212 | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
Usage of Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting

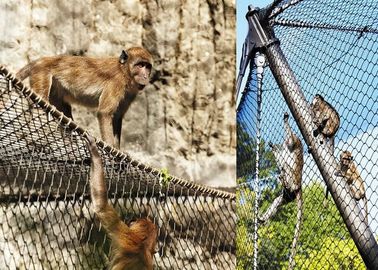

Our stainless steel zoo mesh animal enclosure mesh is an extremely strong containment netting suitable for smaller mammals, primates and large birds. Individual mesh knots are double fastened and the netting does not have to be installed under tension.
FAQ of Black Oxide Stainless Steel Lion Mesh Tiger Mesh Zoological Enclosure Netting
Yes, we will manufacturer as your required specifications like mesh size, rope diameter or other special materials etc. Manufacturing always follow your instructions.
Firstly clear one concept when talk about the length and width. Is the rope mesh installation horizontal or vertical? See below picture. We ‘d better clear the direction before confirming the length and width. In the status of vertical (see below) ,any Width is available .Length should be limited to 20meters . We have to joint the mesh in length if exceed.
Yes ,but we strongly propose our customer cut and joint in their working field .Tolerance in size could be avoid in this way . We will also help you in method and tools regarding the cut and joint.
We can supply proposal or suggestions for your design. Some fee will taken for complicated overall designs.
Service of Yuntong:
Yuntong is experienced in manufacturing high quality flexible rope mesh,providing different wire rope diameter,mesh width process,the nets shapes can be finished at square panel,rhombus panel,triangular panel. customized nets height and length.supplied more than 30 types border design plans to meet different installation required.
