Waterproof Stainless Steel Architectural Mesh Aperture Customized For Protection

Waterproof Stainless Steel Architectural Mesh Aperture Customized For Protection

  • Waterproof Stainless Steel Architectural Mesh Aperture Customized For Protection
Waterproof Stainless Steel Architectural Mesh Aperture Customized For Protection
Product Details:
Place of Origin: China
Brand Name: YT
Certification: CE
Model Number: YT - ferrule
Payment & Shipping Terms:
Minimum Order Quantity: 10㎡
Packaging Details: Package or wooden case
Delivery Time: 5-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200㎡ per week
Contact Now
Detailed Product Description
Name: Stainless Steel Wire Rope Mesh Net Structure: 7*7
Diameter: 1.2-3.2mm Aperture: 25-300mm, Big Aperture Can Be Customized
Type: Ferrule Feature: High Strength, Diamond, Water Proof
High Light:

architectural wire mesh fencing

,

architectural wire rope mesh

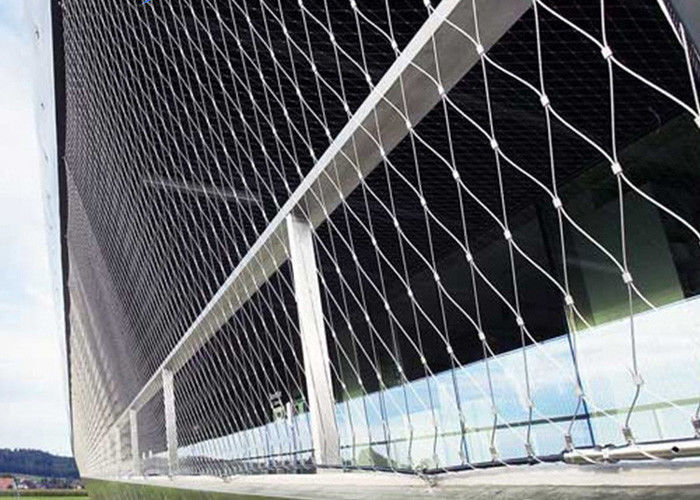

Strong Stainless steel Architectural mesh for protection



--Material: stainless steel 304, 316, 316L.

--Wire Rope Construction: 7x7 and 7x19

--Wire Rope Diameter: 1.2mm, 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm

--Mesh Aperture: 1x1", 1.5x1.5", 2x2", 3x3", 4x4"

--Features: Weather-Resistant, Non-Corroding and Corrosion Resistant.

--MOQ: 10 square meters



Recommend specification for black oxide zoo wire mesh






The list of Stainless Steel Wire Rope Mesh (knotted mesh)Material made of S.S 304 or 316 and 316L
Code Wire Rope Construction Min. Breaking Load
(KN)
Wire Rope Diameter Aperture
Inch mm Inch mm
YT-3210 7x19 8.735 1/8 3.2 4" x 4" 102 x 102
YT-3276 7x19 8.735 1/8 3.2 3" x 3" 76 x 76
YT-3250 7x19 8.735 1/8 3.2 2" x 2" 51 x 51
YT-2410 7x7 5.315 3/32 2.4 4" x 4" 102 x 102
YT-2476 7x7 5.315 3/32 2.4 3" x 3" 76 x 76
YT-2450 7x7 5.315 3/32 2.4 2" x 2" 51 x 51
YT-2076 7x7 3.595 5/64 2.0 3" x 3" 76 x 76
YT-2050 7x7 3.595 5/64 2.0 2" x 2" 51 x 51
YT-2038 7x7 3.595 5/64 2.0 1.5" x 1.5" 38 x 38
YT1676 7x7 2.245 1/16 1.6 3" x 3" 76 x 76
YT-1650 7x7 2.245 1/16 1.6 2" x 2" 51 x 51
YT-1638 7x7 2.245 1/16 1.6 1.5" x 1.5" 38 x 38
YT-1625 7x7 2.245 1/16 1.6 1" x 1" 25.4 x 25.4
YT-1250 7x7 1.36 3/64 1.2 2" x 2" 51 x 51
YT-1238 7x7 1.36 3/64 1.2 1.5" x 1.5" 38 x 38
YT-1225 7x7 1.36 3/64 1.2 1"x1" 25.4x25.4
YT-1220 7x7 1.36 3/64 1.2 4/5"x4/5" 20x20

Other application of black oxide zoo wire mesh

Animal Enclosure mesh, animal cages, bird netting, Agriculture, Residential, Sports, Fall Security,

Ocean Park and other similar environments,garden decoration and construction and renovation
