Name: Stainless Steel 316 Woven Type Rope Mesh / Zoo Mesh Enclosure Size Customized
Brand: Anping Yuntong Metal Mesh Co., Ltd.
SKU: YT-J2460W
Availability: InStock

Home Products Animal Enclosure Mesh

Stainless Steel 316 Woven Type Rope Mesh / Zoo Mesh Enclosure Size Customized

Product Details:

Place of Origin:	Anping, Hebei
Brand Name:	Yuntong
Certification:	CE & SGS
Model Number:	YT-J2460W

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meters
Packaging Details:	waterproof bags and wooden case
Delivery Time:	5-10 days
Supply Ability:	500 square meters per month

Contact Now

Detailed Product Description

Material:	SS316(l), Ss304	Wire Diameter:	1.2mm, 1.5mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm
Opening Size:	2525mm To 102102mm	Mesh Type:	Woven Type & Ferrule Type
Mesh Surface Treatment:	Polished Or Black Oxide	Installation Guide:	Available
Certification:	CE & SGS	Construstions:	77 & 719
Mesh Orientation:	Horizontal , Vertical	Panel Size:	Customized
Highlight:	animal cage fencing , bird enclosure netting

Stainless steel 316 woven type rope mesh, zoo mesh enclosure

Stainless Steel 316 Woven Type Rope Mesh / Zoo Mesh Enclosure Size Customized 0

Zoo Wire Mesh Specification As following :

Hole Size	1.2MM(3/64)	1.6MM(1/16)	2.0MM(5/64)	2.4MM(3/32)	3.2MM(1/8)
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Stainless Steel 316 Woven Type Rope Mesh / Zoo Mesh Enclosure Size Customized 1

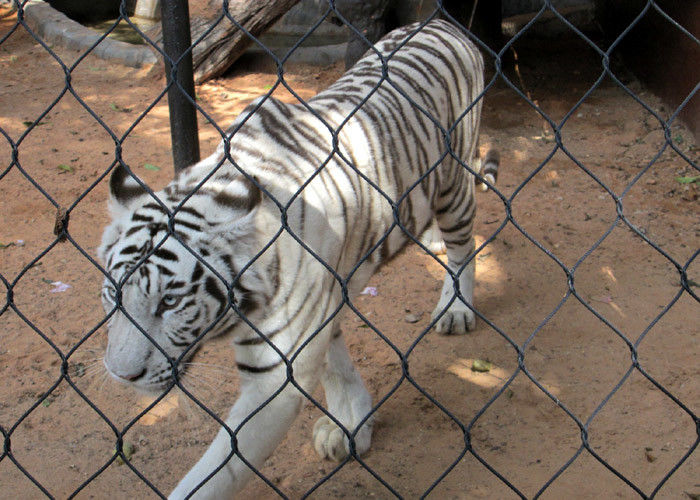

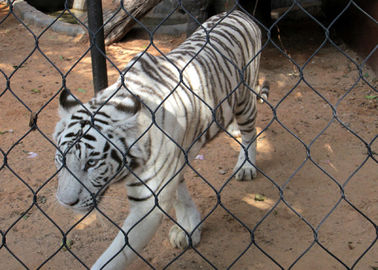

The Zoo wire mesh is rhombus mesh, has excellent flexible performance, virtually indestructible,
most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.

Stainless Steel 316 Woven Type Rope Mesh / Zoo Mesh Enclosure Size Customized 2

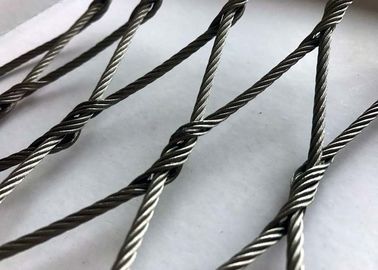

Finished diamond mesh style when it is stretched at 60 degree angle ;

Stainless Steel 316 Woven Type Rope Mesh / Zoo Mesh Enclosure Size Customized 3

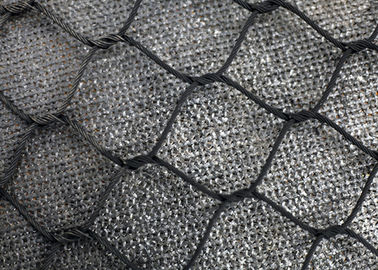

Zoo Wire Mesh Details

Product Name	Stainelss Steel Zoo Wire Mesh
Product Type	X-tend Rope Wire Mesh
Material Type	High Grade AISI316
Finished	Ultrasonic Bath , Black Oxide
Features	Weather-Resistant , Non-Corroding , Rugged

X-tend Zoo Mesh is custom manufactured to in widths and lengths to suit your zoo park architectural application. Diagonal and irregular shapes can also be supplied. Black anodised or galvanised finish options

The Yuntong Zoo Wire Mesh is a vibrant, premium-quality product made from the stainless AISI 316 material group:the mesh aperature W x H (variable from very tight to very wide), the wire-rope diameter (1.2 mm, 1.5 mm, 2.0 mm and 3.0 mm) determine fucntion and aesthetics.

Characteristics
Custom-Manufactured
Discrete, elegant and flexible.
Multifunctional,and compatible with creative architecture.
Premium Quality, Rugged , Weather-Resistant , Non-Corroding and Corrosion-resistant,Alkali Resistant

Stainless Steel 316 Woven Type Rope Mesh / Zoo Mesh Enclosure Size Customized 4
